General XLT TA6 2 MCS-3506 MV23-450 WR2020

$0.00

• (2) 3500 PSI @ 6 GPM WASHERS
• DUAL OPERATORS
• WASH WATER RECOVERY
• 20 MICRON RECYCLING

PRESSURE WASHER SPECS
Pressure Washers	(2) MCS-3506-0H6G
	Hot or Cold Water
	5.7 GPM @ 3500 PSI
	Or Two Operators Running 3 GPM @ 3500 PSI
Engine	630 cc GX Series Honda Motor
Pump	Belt Drive Triplex Oil Bath General Pump
	Special Regulating Unloader For Dual Gun Operation
	Bypass Line Back To Holding Tank
Adjustable Thermostat	Yes
Hour Meter	Yes
Three-Way Valve	Yes \| Easily Switch From Tank Supply To Fresh Water Inlet
Generator	2900 Watt 110v Duplex GFCI Protected Outlet
300º Steam Combination	Not Included - Available Upon Request

MOBILE CLEANING SYSTEM EXTRAS
Gun And Wands	Yes \| (2) Variable Pressure
Nozzles	Yes \| (1) Single Operator And (2) Dual Operator
	Stainless Steel Swivels Between Gun And Wand
Rotary Nozzle	Optional \| Not Included
Hose Reels	(2) Heavy Duty Reels \| Double Stacked
High Pressure Hose	200' High Pressure 5,800 PSI Hose On Each Reel (400' Total)
Water Supply	(1) 300 Gallon Water Tank With Auto Shut-Off
	2" Dump Valve For Quick Draining
Spare Parts Kit	Yes

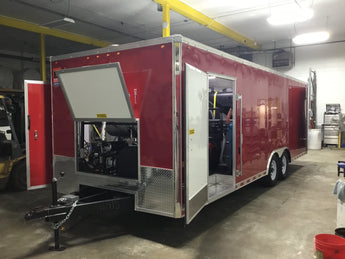

TRAILER SPECS
Trailer Style	Enclosed Cargo
Axles	Tandem 6000 LBS Axles
Dimensions8	' Wide x 20' Length
Brakes	Electric
Interior Lights	Three Interior 12 v Lights
Front Door	Yes \| Flip Up Door
Curbside Door	Yes
Roadside Door	Yes
Rear Double Door	Yes
Curbside Port Door	Yes
Side Vacuum Ports	Yes
Flooring	Sprayed In Slip Resistant Protective Coating
Wheels / Rims	Aluminum
Light Hookup Type	Bargman
Spare Tire	Optional \| Not Included
Diamond Plated Stone Guard	Yes
Powder Coated Screws	Yes
Cold Weather Package	No

WASH WATER RECOVERY SYSTEM
Vacuum Type	Mighty-Vac MV23-455
	Built On Skid Platform
CFM	450 CFM Package
Engine	630 cc Honda
Generator	6000 Watt, 50 Hz
High Water Shut-Off	Yes
Primary Interceptors	Yes \| 2 DOT Approved 15 Gal Stainless Sand Catcher Tanks
Secondary Interceptors	Yes \| 2 DOT Approved 30 Gal Stainless Tanks w/ Slide Out Pre-Filters And Auto Pump Out
Vacuum Hose	400' Crush Resistant Heavy Duty 2" ID Vac Hose
Sand Berms	Yes \| 39" x 11" Sandbags (Sand not provided)
Cotton Mouth Rec Dams	1
Vacuum Hose Reels	1
Vac Surface Cleaner	(1) 21" Stainless Steel Vacuum Recovery Surface Cleaners

WASH WATER RECYCLING SYSTEM
	Recycling To 20 Micron For Re-Use In Pressure Washer
HM Oil Harvester	All Aluminum 150 Gal Tank w/ Sloping Sides For Greater Filtration
	Easy Clean Out Ports With Shut Off On Bottom Of Harvester
Coalescing Grid Pack	Reusable Pack To Catch Oil And Suspended Solids
Cartridge Filters	(2) 150 Square Ft
	Fitted w/ Auto-Bleeder Valves And Replacement Filters
Backwash Capable Multi-Media Filter	Yes
	Back Wash Pump
Backwash Bag Filter	Yes

Training

In person face to face training on your new equipment at our facility in South Bend, IN on the day of pickup for as many of your employees as you care to bring. Or, we can offer to do a live video call to walk through your new system.

Equipment Pick-up Or Delivery

Two options, you may collect at our facility in South Bend, IN or we can arrange to have a third party transporter deliver your new equipment. You are responsible for any fees associated with transport.

Warranty

ALL warranted against manufacturer defects

5 Year coil warranty
2 year Honda motor warranty
5 year back end pump warranty
1 Year on trailer
Lifetime warranty on head
90 Day warranty on wear parts
