INVADER TA3 Custom HM40025 CWP
• 25 GPM @ 4000 PSI
• 7 x 20 ENCLOSED TRAILER
• 300 GALLON SURGE TANK
• FOUR OPERATORS
This is a new Hot And Mighty™ custom Invader series mobile cleaning system. It is powered by a custom built HM-40025 pressure washer. This unit operates 25 GPM at 4000 PSI it can produce approximately 6 GPM at 4000 PSI for four users. The trailer is 7' x 20' with tandem 5200 LBS torflex truck axles with a curb side, roadside, front flip-up and rear double doors.

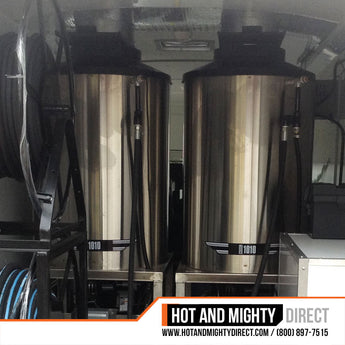

This trailer holds a 300 gallon surge tank, four heavy-duty hose reels and 800 feet of high pressure hose. The unit comes with (2) 1,000,000 BTU Burners to provide adequate heat for the 25 GPM water flow. This unit also features our cold weather trailer package that provides trailer insulation, white PVC interior walls, propane heated unit baseboards and automatic dampener flue.
| PRESSURE WASHER SPECS | |
|---|---|
| Pressure Washer | Custom HM-40025 |
| Hot or Cold Water | |
| 25.0 GPM @ 4000 PSI | |
| Or Four Operators Running 6 GPM @ 4000 PSI | |
| Engine | 124 HP, 2200 RPM Diesel Engin |
| Pump | UDOR VX Series |
| Special Regulating Unloader For Multiple User Operation | |
| Bypass Line Back To Holding Tank | |
| Burner | (2) 1,000,000 BTU Burners |
| 3/4" Steel Coils | |
| Diesel Fired | |
| 12v | |
| Hour Meter | Yes |
| Three-Way Valve | Yes / Easily Switch From Tank Supply To Fresh Water Inlet |
| Generator | 120v Duplex GFCI Protected Outlet |
| MOBILE CLEANING SYSTEM EXTRAS | |
|---|---|
| Gun And Wands | Yes | (6) Variable Pressure |
| Nozzles | Yes | (12) Quick Connect |
| Stainless Steel Swivels Between Gun And Wand | |
| Rotary Nozzle | Optional / Not Included |
| Hose Reels | (2) Heavy Duty Reels | Double Stacked |
| High Pressure Hose | 800' High Pressure 5,800 PSI Hose |
| Water Supply | 300 Gallon Water Tanks | With Auto Shut-Off |
|
|
|
| Spare Parts Kit | Yes |
| INVADER TRAILER SPECS | |
|---|---|
| Trailer Style | Enclosed Cargo |
| Axles | Tandem 5200 LBS Torflex Truck Axles |
| Dimensions | 7' Wide x 20' Length |
| Brakes | Electric |
| Aluminum Wheels - 6 Bolt | |
| 7K Side Crank Jack | |
| Interior Lights | Two Interior 12 v Lights |
| Front Flip-Up Door | Yes |
| Roadside Door | Yes |
| Curb side Door | Yes |
| Rear Double Door | Yes |
| Flooring | Sprayed In Slip Resistant Protective Coating |
| Light Hookup Type | Bargman |
| Exhausted Through Roof | Yes |
| Spare Tire | Optional | Not Included |
| Diamond Plated Stone Guard | Yes |
| Powder Coated Screws | Yes |
| COLD WEATHER TRAILER PACKAGE | |
|---|---|
| Insulation | Yes | Ceiling And Walls |
| PVC Walls | Yes | Upgraded White PVC Walls |
| Exhaust Dampener | Yes | Automatic, Exhausted Through Roof |
| Heating | 4' Electric Baseboard |
| Breaker Box | Yes |
| Propane Heat | 4' Baseboard With Automatic Flue Dampener |
| Tongue Mounted Propane Tanks | (2) 30 Gal Propane Tanks |
Training
In person face to face training on your new equipment at our facility in South Bend, IN on the day of pickup for as many of your employees as you care to bring. Or, we can offer to do a live video call to walk through your new system.
Equipment Pick-up Or Delivery
Two options, you may collect at our facility in South Bend, IN or we can arrange to have a third party transporter deliver your new equipment. You are responsible for any fees associated with transport.
Warranty
ALL warranted against manufacturer defects
5 Year coil warranty
2 year Honda motor warranty
5 year back end pump warranty
1 Year on trailer
Lifetime warranty on head
90 Day warranty on wear parts
