Chopper TA2 MCS-3506
• COMPACT POWER
• DUAL OPERATOR
• 200 GALLON WATER STORAGE
• 5.6 GPM @ 3,500 PSI WASHER

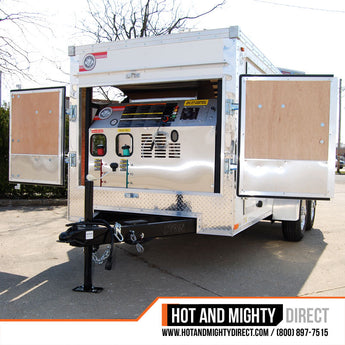

This is a new Hot And Mighty™ Chopper series mobile cleaning system. It is powered by a MCS-3506 pressure washer operating 5.6 GPM at 3500 PSI. This is a single or dual operator unit. The trailer is 6' x 12' with tandem 3500 LBS axles with a front, curbside, roadside and rear double doors. This trailer holds a 200 gallon water supply tank. Each of two heavy-duty hose reels holds two hundred feet of high pressure hose for a total of four hundred feet.
| PRESSURE WASHER SPECS | |
|---|---|
| Pressure Washer | MCS-3506-0H6G |
| Hot or Cold Water | |
| 5.6 GPM @ 3500 PSI | |
| Or Two Operators Running 2.8 GPM @ 3500 PSI | |
| Engine | 630 cc GX Series Honda Motor |
| Pump | Belt Drive Triplex Oil Bath General Pump |
| Special Regulating Unloader For Dual Gun Operation | |
| Bypass Line Back To Holding Tank | |
| Adjustable Thermostat | Yes |
| Hour Meter | Yes |
| Three-Way Valve | Yes | Easily Switch From Tank Supply To Fresh Water Inlet |
| Generator | 2900 Watt 110v Duplex GFCI Protected Outlet |
| 300º Steam Upgrade | Not Included - Available Upon Request |
| MOBILE CLEANING SYSTEM EXTRAS | |
|---|---|
| Gun And Wands | Yes | (2) Variable Pressure |
| Nozzles | Yes | (8) Quick Connect |
| Stainless Steel Swivels Between Gun And Wand | |
| Rotary Nozzle | Optional | Not Included |
| Hose Reels | 2 Heavy Duty Reels | Double Stacked |
| High Pressure Hose | 400' High Pressure 5,800 PSI Hose |
| Water Supply | 200 Gallon Water Tank | With Auto Shut-Off |
| 2" Dump Valve For Quick Draining | |
| Spare Parts Kit | Yes |
| CHOPPER TRAILER SPECS | |
|---|---|
| Trailer Style | Enclosed Cargo |
| Axles | Tandem 3500 LBS Axles |
| Dimensions | 5' Wide x 12' Length |
| Brakes | Electric |
| Interior Lights | Two Interior 40" LED strips |
| Stone Guard | Yes |
| Front Door | Yes | Flip Up Door OR Double Barn Style Door |
| Curbside Door | Yes |
| Roadside Door | Yes |
| Rear Double Door | Yes |
| Flooring | Sprayed in slip resistant rubber floor |
| Wheels / Rims | Aluminum |
| Light Hookup Type | Bargman |
| Spare Tire | Optional / Not Included |
| Diamond Plated Stone Guard | Yes |
| Powder Coated Screws | Yes |
Training
In person face to face training on your new equipment at our facility in South Bend, IN on the day of pickup for as many of your employees as you care to bring. Or, we can offer to do a live video call to walk through your new system.
Equipment Pick-up Or Delivery
Two options, you may collect at our facility in South Bend, IN or we can arrange to have a third party transporter deliver your new equipment. You are responsible for any fees associated with transport.
Warranty
ALL warranted against manufacturer defects
5 Year coil warranty
2 year Honda motor warranty
5 year back end pump warranty
1 Year on trailer
Lifetime warranty on head
90 Day warranty on wear parts
